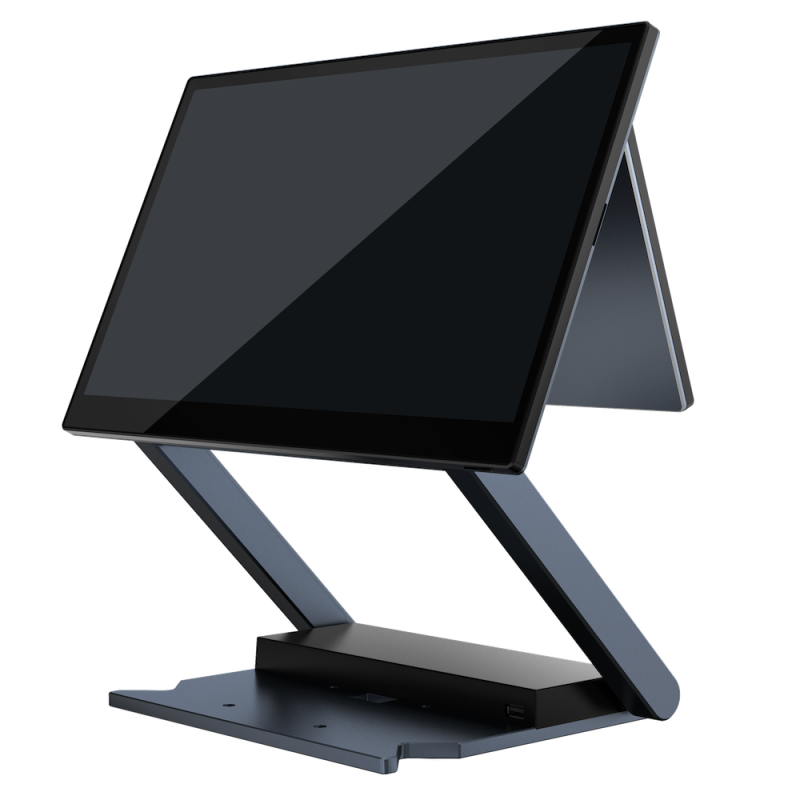

15.6'' Fanless POS Terminal from NEXXT Series

Technical Specifications

CPU

J6412, N97, i3 (10th/11th), i5 (10th/11th)

Memory

DDR4 4G DDR4-2666/2933/3200MHz, Up to 32GB

Storage

M.2 128GB (up to 512GB)

OS Supported

Windows 10, Windows 10 IOT, Windows 11, Linux (ubuntu not less than 20.04)

Display Size

15.6"

Touch

10-point Projected Capacitive Touch

Resolution

1920 x 1080

Display Ratio

16:9

Brightness

250cd/m²

Contrast Ratio

800:1

Response Time

10ms

Video Interface

EDP

I/O Interface

DC12V IN 1×HDMI 5×USB2.0 1×USB3.0 2×RS232 1×CASH DRAWER(RJ11)

Power

Input: AC 100-240V Output: DC 12V/5A

Dimensions (W x D x H)

365 x 233 x 45, N.W. 5.1 Kg

Packing Dimensions (W x D x H)

480 x 370 x 110 mm, G.W. 5.6 Kg

VESA Mounting

75×75mm / 100×100mm

Certificates

FCC / CE / RoHS

Optional Peripherals

ISO Track 1/2/3 Magnetic Stripe Reader 2×20 VFD / 10.1” Second Display iButton / Fingerprint
